OUR PRODUCTS
AUTO TRANSFORMER STARTER
AIR CIRCUIT BREAKER PANEL
TRANSFORMER
DOL & STAR DELTA STARTERS
DRILL CONTROL PANEL
DISTRIBUTION BOARD PANEL
GATE END BOX

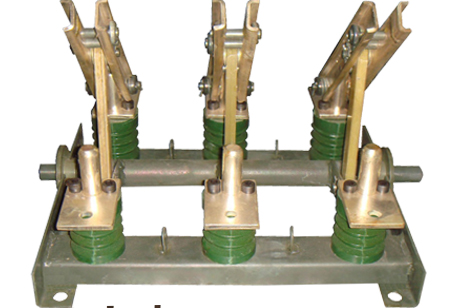

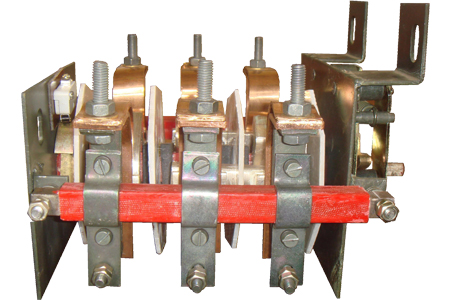

ISOLATORS
JUNCTION BOX
LIGHTING TRANSFORMER
MINING TYPE GLANDS UPTO 6.6KV.
MCCB PANEL

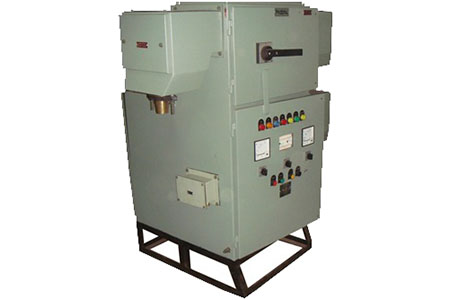

MULTI PANELS
PLUG & SOCKET
TRANSWITCH UNIT- FLP & NFLP
VACUUM CIRCUIT BREAKER PANEL
VACUUM CIRCUIT BREAKER
VACUUM CONTACTOR

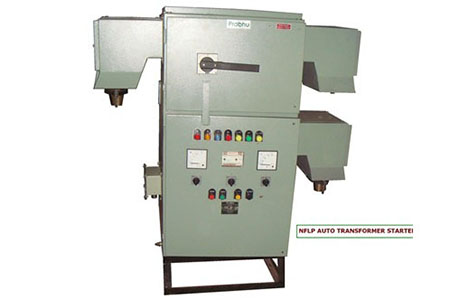

Auto-transformer starter up to 400 amps 6.6 KV. This equipment is suitable where it is required to reduce the starting current of the motor. This starter can also be used when the motor requires longer acceleration time with good starting torque.
Key Features
CIMFR certified, DGMS approved & ISI marked flameproof air circuit breaker panel upto 400 amps,1140 volts for use in Gas Group I.
Key Features

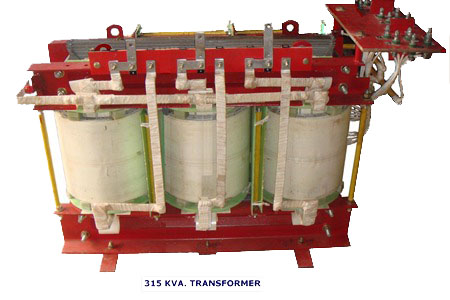

Transformer upto primary rated voltage of 11KV and secondary as per customer choice. Transformer can be supplied Dry type or Oil Cooled type.
The transformers are designed for power supply of power converter installations in AC electric network with power frequency of 50 Hz. The transformer is explosion proof supplied as bare transformer or in a suitable tank with all the connections made to the cable boxes for use in gaseous and dusty environment. The transformer is insensitive to temperature and dust.

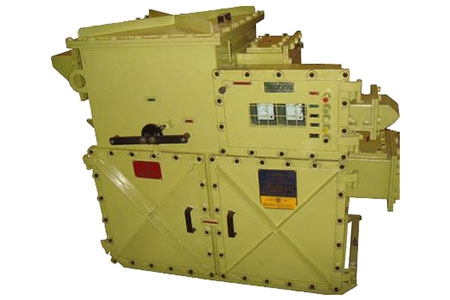

CIMFR certified, DGMS approved & BIS marked flameproof mining starter suitable for use in Group I as per IS/IEC: 60079-1:2007 with the following variations:
Type FS-II, FS-III & FS-IV- upto 550 volts., 600 amps.
Type FSHT-7- upto 6.6KV, 400A
Key Features
APPLICATIONS
These starters are used in industries of coal mines.
For: Motor control, long wall and short wall installations, conveyors belt, fans and compressors, mining pumps.
CIMFR certified, DGMS approved & ISI marked flame proof drill control panel, type DP-5 suitable for use in Group I as per IS/IEC: 60079-1:2007 to drive 1.5HP, 125 volts coal drill machine. The drill control panel transformer is approved up to 2.5KVA.
Key Features
We manufacture FLP/NFLP panel consisting of fuses, circuit breakers and protection relays. The panels can be formed having single incoming /outgoing power source or single incoming and multiple outgoing power source. The panel can be customized as per the need of the customer.The panels are specially designed to be used in underground/open cast coal mines,industries of motors,fans, compressors, conveyor belts etc.

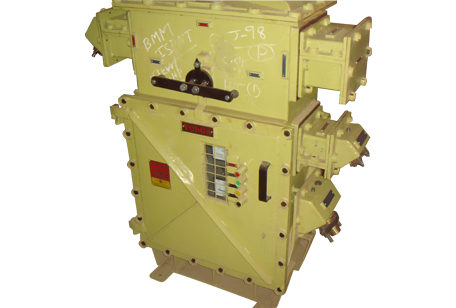

CIMFR certified, DGMS approved and ISI marked flame proof Gate end box suitable for use in Gas Group I as per IS/IEC: 60079:1:2007 upto 400 amps, 1140 volts.
Key Features
NFLP cable junction box upto 11KV. The Junction box is designed for concealing electrical junctions and providing protection to wiring at various junction points. Prabhu make junction box are indoor type, dust and vermin proof floor mounting type.
Key Features
ADDITIONAL Features
CIMFR certified, DGMS approved and BIS marked FLP Lighting transformer upto 10KVA, voltage upto 1140volts.
Key Features

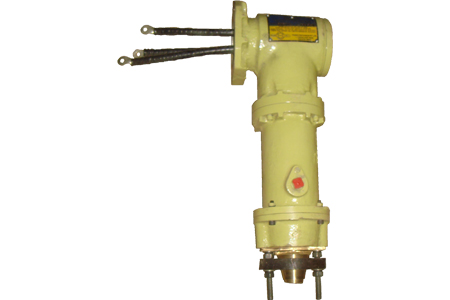

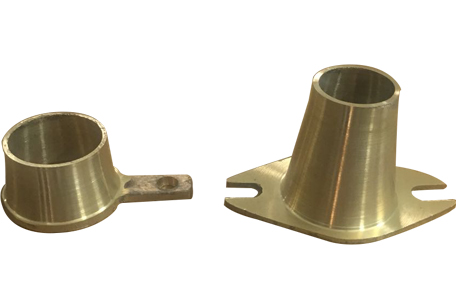

MINING TYPE GLANDS UPTO 6.6KV.
APPLICATION: COAL MINES
MCCB PANEL for voltage 440-550V, 1250A.
KEY FEATURES

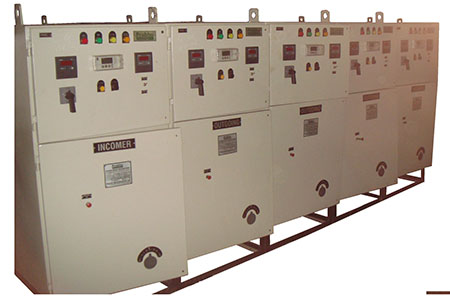

Our multi & distribution panels represent high level of innovations. The panels are designed by combining two or more different or similar panels which are flexible and easy to install. The panels can be customised according to the need of the client and its use vary from distribution, protection, breaking etc.
The salient features are:
Some of our variation includes:
FLP Plug and socket upto 300 amps.

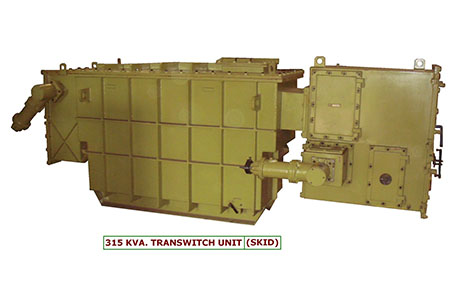

Flameproof Transwitch Unit can be supplied upto 1000KVA. Vaccum Circuit Breaker Panel rated up to 630A is coupled to the equipment for voltages upto 7.2KV in the primary side. One LT panel is provided for voltages upto 1100V in the secondary side.
Key features
APPLICATIONS
FLAME PROOF VCB PANEL
CIMFR certified, DGMS approved & ISI marked Flame proof vacuum circuit breaker panel, type FLP VCB-01 suitable for use in group 1 as per IS/IEC-60079-1:2007 rated upto 630Amps and voltage upto 7.2KV.The enclosure can be used as single panel formation or multi panel formation as per customers requirement.
Key features
NON FLAME PROOF VCB PANEL
CIMFR certified, DGMS approved & ISI marked Flame proof vacuum circuit breaker panel, type FLP VCB-01 suitable for use in group 1 as per IS/IEC-60079-1:2007 rated upto 630Amps and voltage upto 7.2KV.The enclosure can be used as single panel formation or multi panel formation as per customers requirement.
Key features

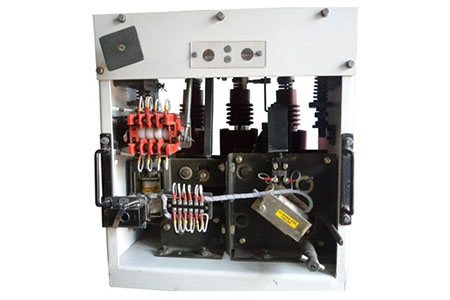

CPRI tested Vacuum Circuit Breaker. The vacuum circuit breakers are withdrawable type circuit rated upto 7.2KV and 12KV specially designed to break the circuit so that energy cannot continue flowing preventing fires and other problems that may arise due to some technical fault.
Range
Key features

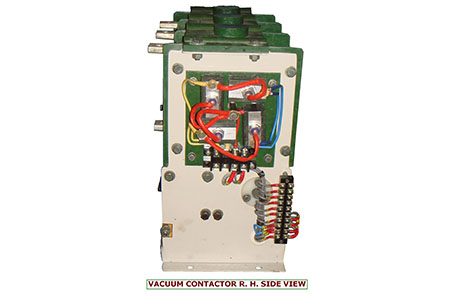

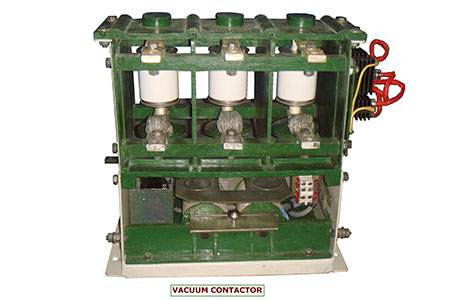

CPRI tested vacuum contactor as per IS: 9046 rated upto 7.2KV, 400 amps. AC 4 utilisation category.
The vacuum contactor is designed for convenience, safety and reliability.
Range
Key features
Technical Data
Maximum nominal voltage | 7.2 KV |
Rated operational current | 400 ampere |
Category | AC- 4 |
Power frequency | 50 Hz |
Mechanical life(operation) | 1 million |
Electrical life(operation) | 1 million |
Rated impulse withstand voltage | 45 KV |
Switching frequency | 1200 opm/hr |
Dielectric withstand | 20KV-60 sec |
Auxilliary contacts | 2 N/o + 1 N/c |
Control supply voltage | 110/115 DC |
Contactor coil data: Inrush | 7.3 amps |
Continuous | 0.2 amps |
Min.Coil pickup | within 90V |
Max.Coil dropout | between 80-11V |
Rating of motor(Max) | 4900HP/3600 KW |
Weight | 20 KG |
